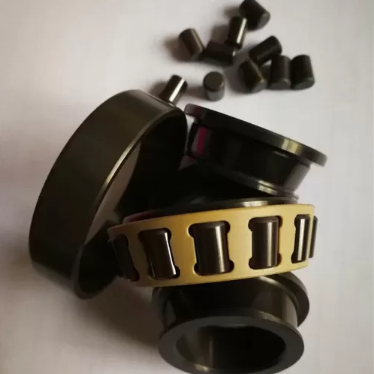

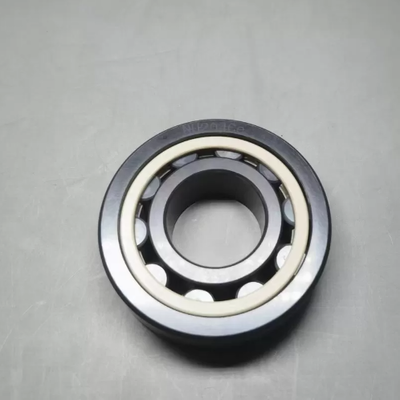

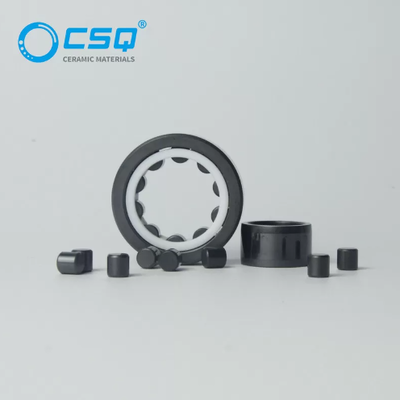

High Speed Capability Silicon Nitride Roller Bearing with Electrical Insulation and Corrosion Resistance
| Lugar de origem | China |
|---|---|
| Marca | CSQ |
| Certificação | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Número do modelo | Personalizado |
| Quantidade de ordem mínima | 100 unidades |
| Preço | negotiable |
| Detalhes da embalagem | Caixa de espuma+Cartom |
| Tempo de entrega | 20-45 dias úteis |
| Termos de pagamento | T/T |
| Habilidade da fonte | 3000 unidades por mês |
Detalhes do produto
| Aplicativos | aeroespacial, dispositivos médicos, processamento químico e máquinas de alta velocidade | Material da gaiola | PTFE/ESPREITAM de borracha |
|---|---|---|---|
| Capacidade de carga | Alta capacidade de carga | Material | Nitreto de Silício |
| Categoria | Rolamento de rolo cerâmico | Resistência à corrosão | Excelente |
| Capacidade de rolamento | Alto | Tamanho | Personalizado, de acordo com os desenhos |
Descrição de produto
Hybrid Silicon Nitride Roller Bearings Have High Speed And Electrically Insulating And Maintenance-Free
Product Overview
Our silicon nitride roller bearings use ceramic rollers combined with steel rings (hybrid type) or full ceramic rings (all-ceramic type), designed for high-reliability rotating equipment under extreme operating conditions.
Key Advantages
- High-Speed Capability - Low density (3.2 g/cm³) reduces centrifugal force, increasing speed limit by 30%-50% compared to steel bearings
- High Temperature Resistance - Operating range -200°C to +1200°C (all-ceramic type), no hardness loss at elevated temperatures
- Electrical Insulation - Prevents electric pitting, ideal for inverter motors, generators, railway traction motors
- Corrosion Resistance - Resists acids, alkalis, seawater, chemical solvents
- Low Friction & Self-Lubricating - Reduces heat generation, enables long-term operation with minimal or no lubrication
- High Rigidity & Low Thermal Expansion - Maintains precision positioning, better thermal stability than bearing steel
Product Configurations
| Type | Roller | Ring | Application |
|---|---|---|---|
| Hybrid Ceramic Bearing | Si₃N₄ Roller | Steel (GCr15) | High speed, electrical insulation, moderate load |
| All-Ceramic Bearing | Si₃N₄ Roller | Si₃N₄ Ring | High temperature, strong corrosion, non-magnetic environment |
Available Bearing Types
- Silicon nitride cylindrical roller bearings
- Silicon nitride tapered roller bearings
- Silicon nitride spherical roller bearings
- Custom dimensions and precision grades (P0 / P6 / P5 / P4)
Typical Applications
- High-speed spindles (machine tools, PCB drilling machines)
- EV drive motors
- Aero-engine accessory drives
- Chemical pumps, vacuum pumps, semiconductor equipment
- Wind turbine gearboxes
- Medical equipment (e.g., CT scanner high-speed rotating parts)
Why Choose Us
Unmatched Experience
With more than 40 years since 1982, we are a pioneer in China's ceramic bearing market. Our ZXSQ and CSQ brands own 11 utility model invention patents, and our professional team tailors bearing solutions to meet specific customer needs.
With more than 40 years since 1982, we are a pioneer in China's ceramic bearing market. Our ZXSQ and CSQ brands own 11 utility model invention patents, and our professional team tailors bearing solutions to meet specific customer needs.
Superior Manufacturing Capability
Our automated grinding and assembly line produces 3 million sets of bearings annually at P5 and P4 precision grades. We also use an ABB Sweden hot isostatic pressing (HIP) furnace capable of temperatures above 2,000°C, ensuring superior material performance.
Our automated grinding and assembly line produces 3 million sets of bearings annually at P5 and P4 precision grades. We also use an ABB Sweden hot isostatic pressing (HIP) furnace capable of temperatures above 2,000°C, ensuring superior material performance.
Quality Stability Without Supply Risk
Thanks to strong partnerships with raw material suppliers and our own stable production technology, we maintain consistent product quality that remains unaffected by international price fluctuations.
Thanks to strong partnerships with raw material suppliers and our own stable production technology, we maintain consistent product quality that remains unaffected by international price fluctuations.
