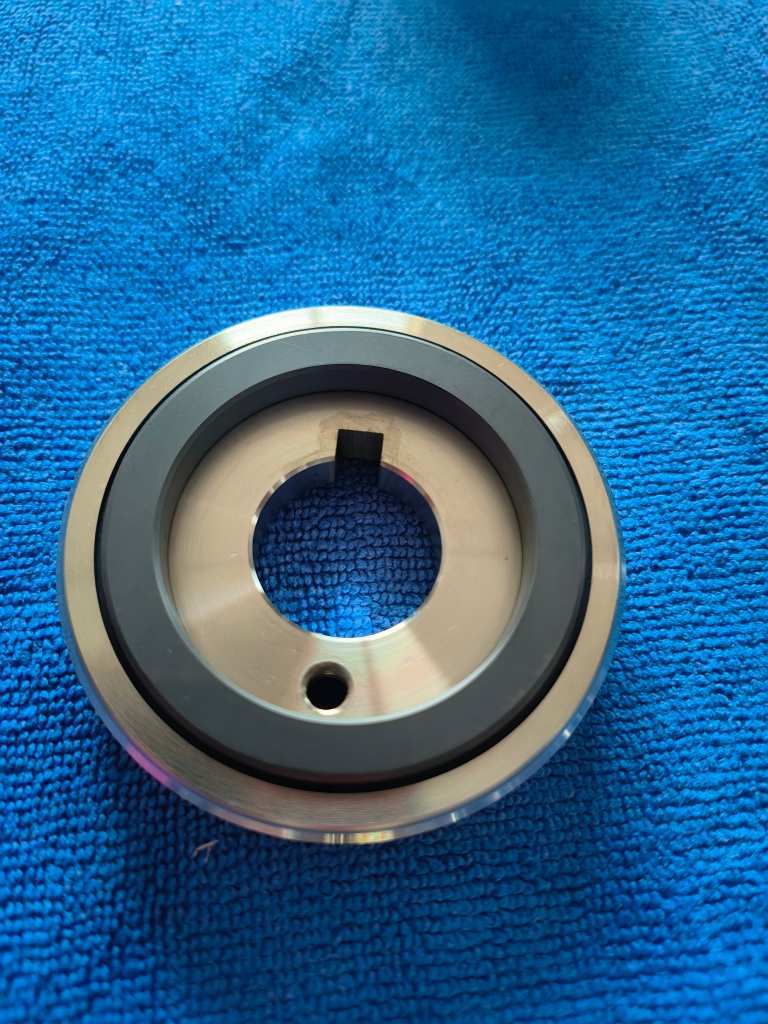

SiC Thrust Washer Sliding Bearing for Canned Motor Pump

  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
Lugar de origem China
Marca CSQ
Certificação FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Número do modelo produtos personalizados
Quantidade de ordem mínima 20-50 PCs
Preço negotiable
Detalhes da embalagem Caixa de espuma+caixa
Tempo de entrega 20-45 dias de trabalho
Termos de pagamento T/T
Habilidade da fonte 2000pcs por mês

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

bate-papo: 0086 18588475571

skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Nome Rolamento deslizante de cerâmica personalizado Categoria Rolamento da bomba de cerâmica
Material Carboneto de silício sinterizado sem pressão + aço inoxidável Tamanho Personalizado, de acordo com os desenhos
Usar Bomba de motor enlatada Pacote Caixa de espuma+caixa
Palavra-chave rolamento de bomba de motor enlatada Tipo Parte da transmissão crucial
Destacar

Thermal Stable SiC Sleeve Sliding Bearing

,

High Hardness Ceramic Sliding Bearing

,

Low Thermal Expansion Canned Motor Pump Bearing
Você pode marcar os produtos de que precisa e se comunicar conosco no quadro de mensagens.
Deixe um recado
Descrição de produto
SiC Sleeve Sliding Bearing for Canned Motor Pump
The Silicon Carbide (SiC) Sleeve and Thrust Disc Assembly is a critical transmission component serving as both the support and rotational unit in canned motor pumps. Silicon carbide (SSiC), renowned for its outstanding corrosion resistance, wear resistance, and superior material properties, stands as one of the most ideal sliding bearing materials for such pumps.
Key Features
  • Superior Wear Resistance: High hardness and low friction coefficient of SiC (SSiC/SiC) ensure extended service life.
  • Corrosion Resistance: Immune to acids, alkalis, and high-temperature fluids, ideal for aggressive media.
  • Thermal Stability: Low thermal expansion maintains dimensional accuracy under high-speed rotation.
  • Customizable: Available in standard or integrated designs to fit various pump models.
Typical Uses
  • Chemical process pumps, nuclear coolant systems
  • High-purity fluid transfer (e.g., semiconductor-grade chemicals)
  • Sealless solutions for extreme pressure/temperature conditions
Main Application of Canned Motor Pump
  1. The canned motor pump can be used in common corrosive conditions, such as the medium of inorganic matter, acid, alkaline and salt. In such conditions, SSiC (sintered) is taken as standard sliding bearing.
  2. The canned motor pump can be used in common corrosive conditions with media that are easy to vaporize.
Key Properties of Pressureless Sintered Silicon Carbide
Property Value
Max Temperature up to 1650℃
Low density 3.15-3.18 g/cm3
Low thermal expansion 4.0 (10-6/℃)
High thermal conductivity 120 W/m°K
High hardness 2800 HV5
High elastic modulus 410GPa
Chemical stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)

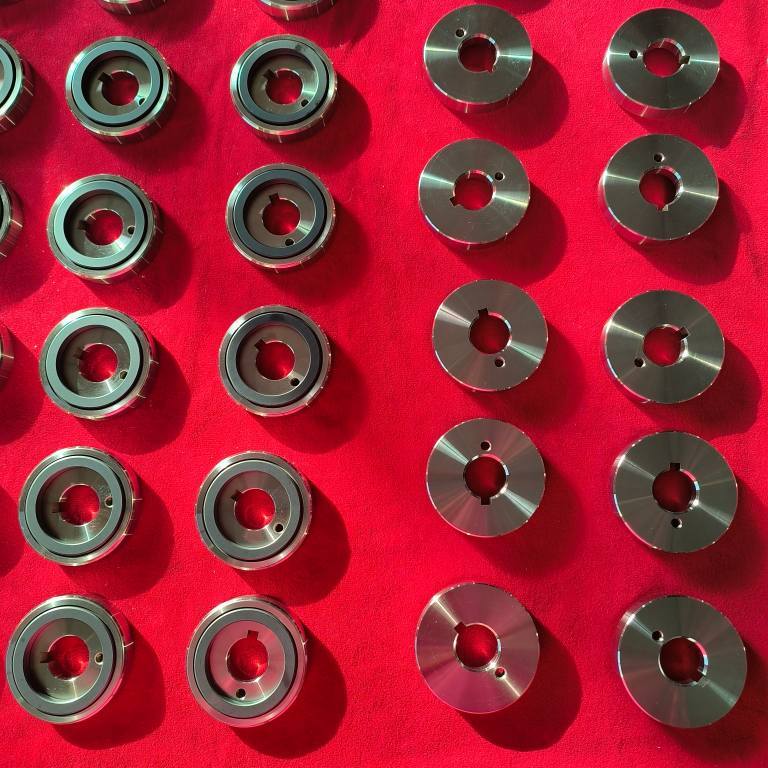

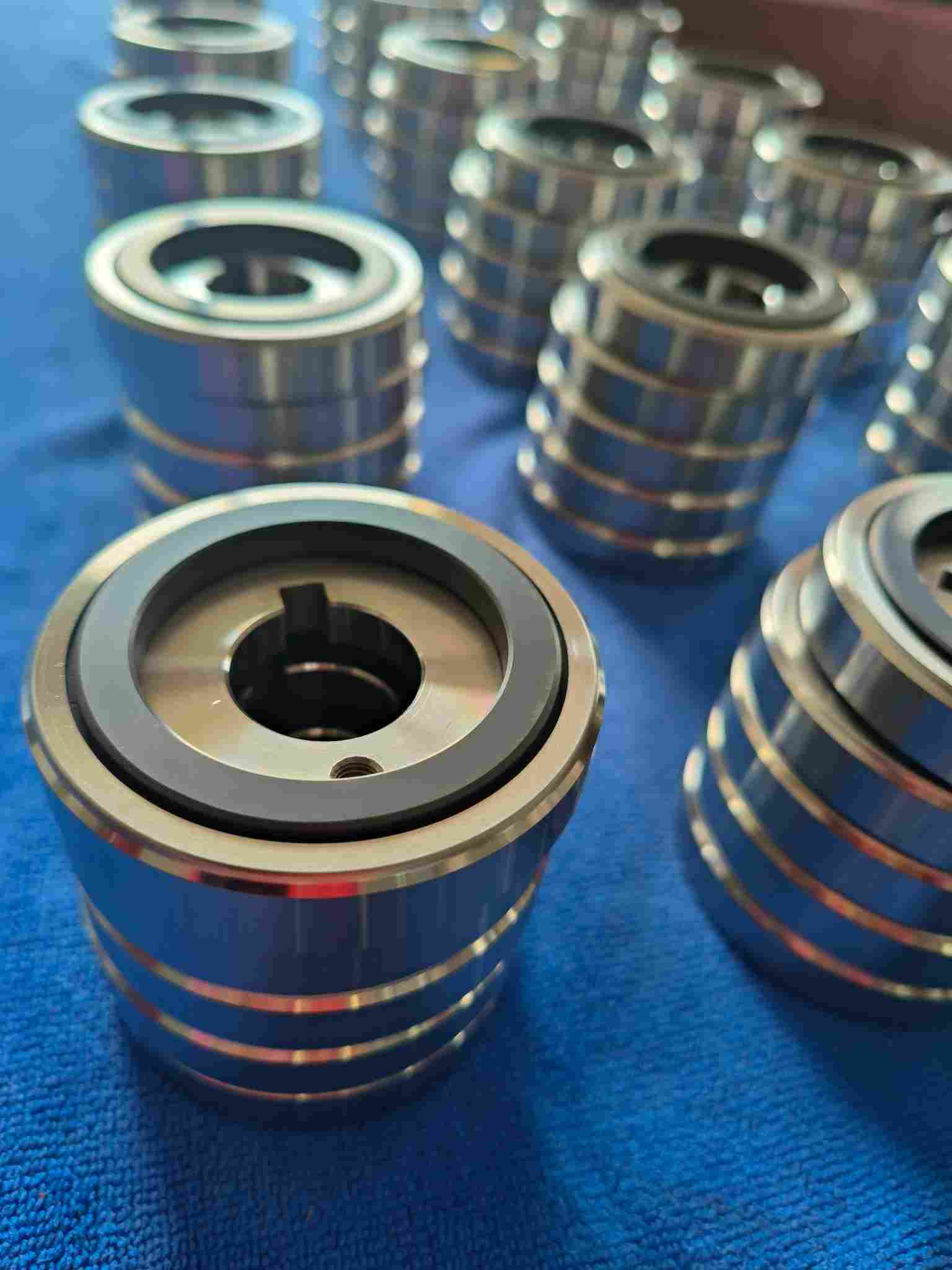

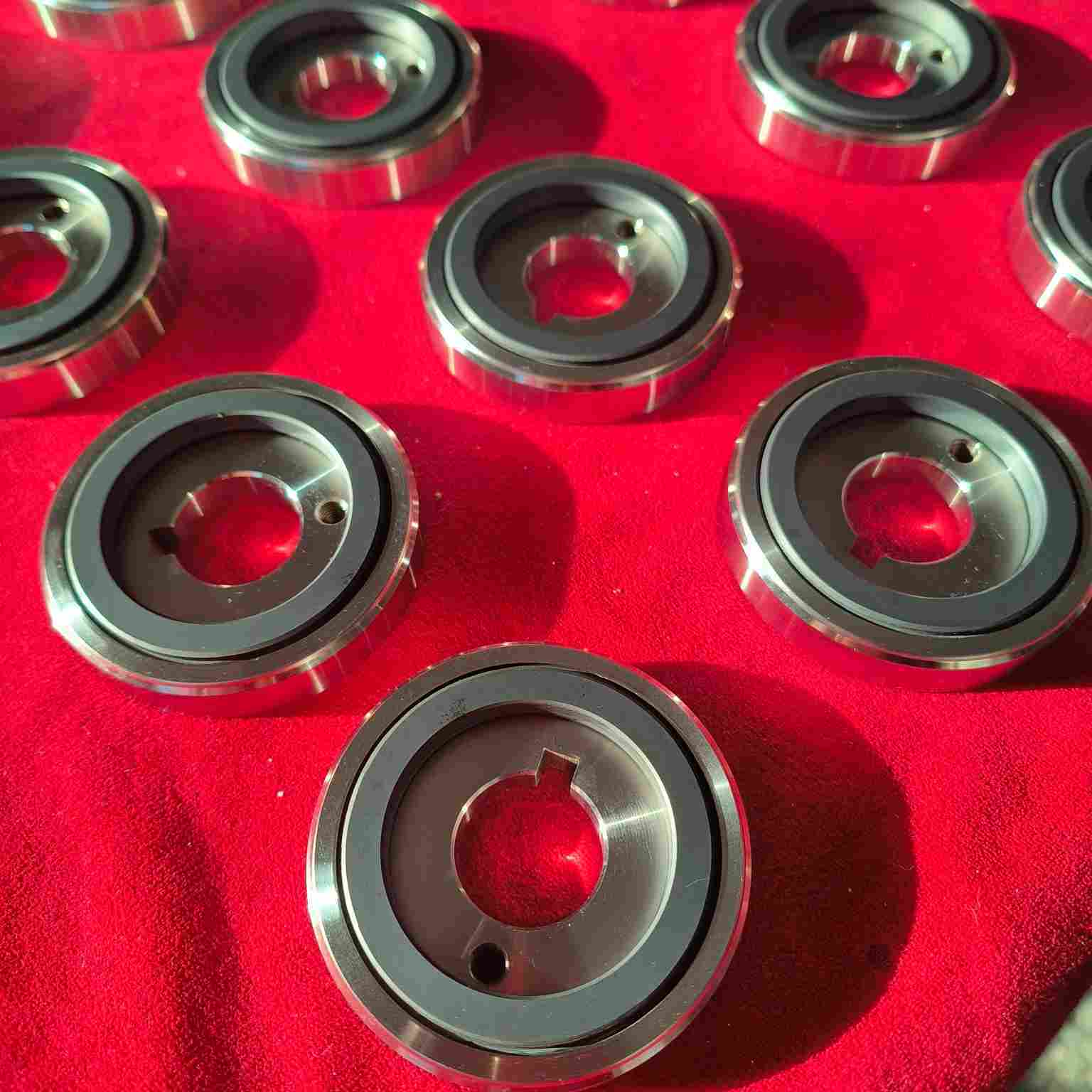

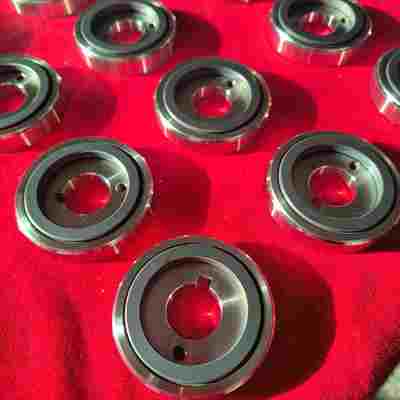

SiC Thrust Washer Sliding Bearing for Canned Motor Pump 0
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 1
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 2
Our Factory and Processing Machines
We have three factories in China to meet different customer needs, equipped with advanced pressing, sintering and processing machines.
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 3
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 4
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 5
